Guide Rings (Wear Rings for Hydraulic Systems)

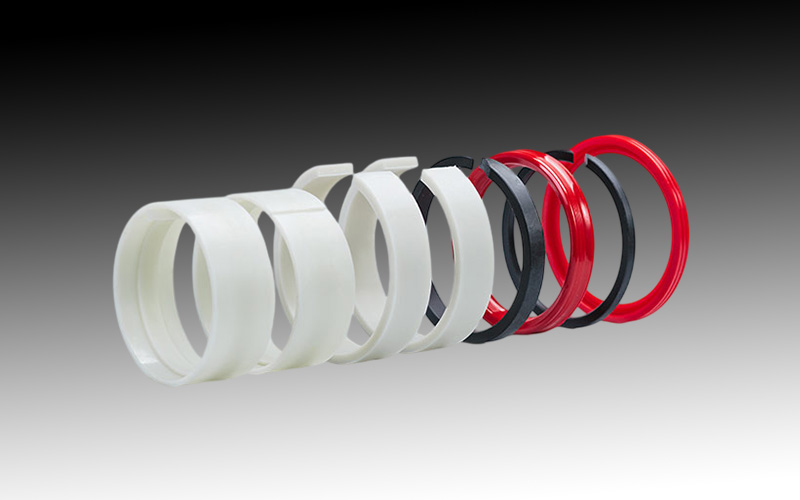

Guide Rings—also known as Wear Rings—are critical components used in hydraulic and pneumatic cylinders to guide the piston and rod, prevent metal-to-metal contact, and absorb side loads. Manufactured using high-performance materials such as filled PTFE, PEEK, and composite thermoplastics, our guide rings are engineered for high wear resistance, low friction, and excellent thermal and chemical stability. These rings are available in split and solid configurations and are custom-machined to match application-specific groove dimensions. With reliable dimensional control and long service life, our guide rings help ensure smooth cylinder operation and extend the lifespan of seals and mating parts.
Stability. Protection. Precision.
Key Features & Applications
Side Load Absorption
Prevents piston rod misalignment and metal contact in hydraulic cylinders.
Custom Machined Profiles
Designed for precise fitment and minimal clearance in grooves.
Protects Sealing Components
Reduces wear on seals and improves performance consistency over time.
Engineered Guidance for Hydraulic Motion
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Options | PTFE (filled), PEEK, Nylon, Polyester Resins, Thermoplastics with Glass/Carbon Fillers |
| Temperature Range | -50°C to +250°C (depending on material) |
| Design Types | Split Ring, Solid Ring, Angle Cut, Butt Cut |
| Maximum Load Capacity | Up to 350 bar (dependent on application and material) |
| Surface Finish Requirement | Ra ≤ 0.4 µm on contact surfaces |
| Typical Applications | Hydraulic Cylinders, Pneumatic Cylinders, Injection Molding, Presses |
| Machining Tolerances | ±0.02 mm (customizable based on size & groove) |
| Certifications | ISO 9001:2015, RoHS, FDA Grade Materials (on request) |
