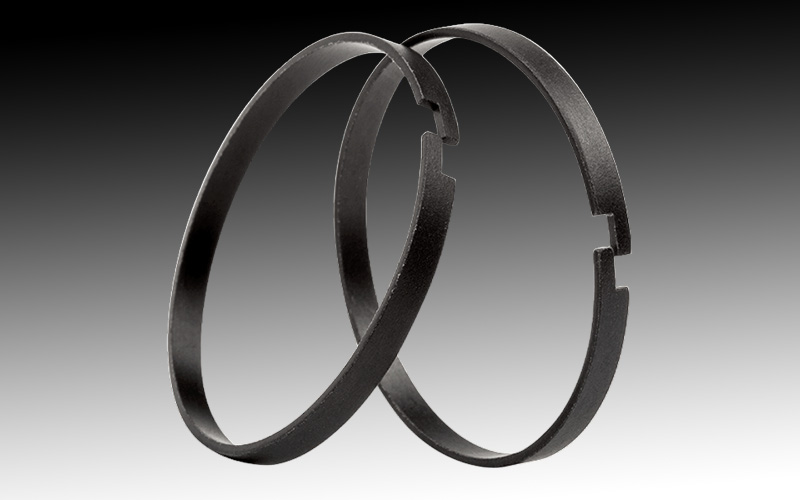

Piston Rings (Polymer & Composite Grades)
Our Piston Rings are precision-engineered from high-performance polymers such as PTFE, PEEK, and filled engineering plastics, ideal for dynamic sealing in linear and rotary motion systems. These rings provide excellent wear resistance, self-lubrication, and low friction—making them ideal for compressors, hydraulic cylinders, shock absorbers, and rotary actuators. Designed to withstand high temperatures, aggressive media, and continuous motion, our piston rings offer reliable sealing even in extreme operating conditions. We offer customized solutions for OEMs and replacement applications with tight dimensional tolerances and consistent quality.
High-Speed. Low-Friction. Wear-Resistant.
Key Features & Applications
Low Friction Operation
Ideal for dry running or low-lubrication environments with minimal wear.
Thermal & Chemical Resistance
Performs in high-temperature, high-pressure, and aggressive media conditions.
Custom Geometry
Rings available in various split, step-cut, and scarf-cut profiles for perfect fit.
Precision Components for High-Performance Systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Options | PTFE (filled/virgin), PEEK, UHMWPE, PPS, Graphite/Carbon/Bronze filled grades |
| Temperature Range | -100°C to +260°C |
| Max Operating Pressure | Up to 250 bar (application dependent) |
| Design Profiles | Split, Step-cut, Scarf-cut, Double-split |
| Friction Coefficient | Low, ideal for high-speed linear & rotary motion |
| Applications | Compressors, Shock Absorbers, Hydraulic Cylinders, Engine Components |
| Surface Finish Requirement | Ra ≤ 0.3 µm (mating surface) |
| Certifications | ISO 9001:2015, RoHS Compliant, FDA Grades on Request |
