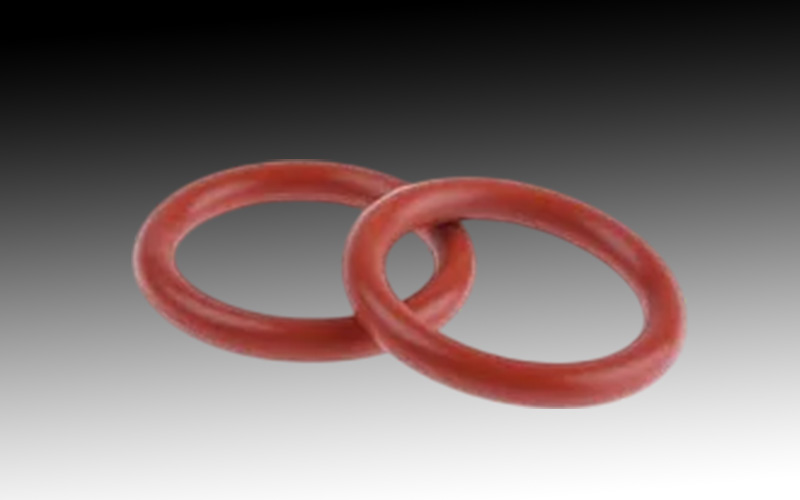

O Rings
O Rings are the most widely used and versatile sealing elements in the industry, offering reliable leak-proof solutions for a wide range of static and dynamic applications. Designed in a simple circular cross-section, O Rings are seated in a groove and compressed during assembly between two or more parts, forming a tight seal. These components are ideal for both low and high-pressure systems and are available in various elastomers and high-performance materials. Common applications include pumps, cylinders, flanges, and valves across automotive, aerospace, medical, and chemical processing industries.
Dependable Sealing, Simplified
Key Features & Applications
Universal Design
Effective in both static and dynamic sealing for gases, liquids, and chemicals.
Chemical & Fluid Resistance
Available in FKM, NBR, EPDM, Silicone, PTFE, and other custom formulations.
High Durability
Withstands high temperatures, pressure fluctuations, and aggressive environments.
Simple Yet Essential Sealing Technology
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Options | FKM (Viton), NBR, EPDM, Silicone, PTFE, HNBR, FFKM |
| Temperature Range | -60°C to +325°C (varies by material) |
| Pressure Range | Up to 500 bar (static); 250 bar (dynamic) |
| Hardness | 40 to 90 Shore A |
| Size Standards | AS568 (Inch), ISO 3601, DIN 3771, JIS B 2401 |
| Applications | Pumps, Valves, Compressors, Flanges, Engines, Fuel Systems |
| Certifications | FDA, RoHS, REACH, USP Class VI (on request) |
| Features | Low cost, easy to install, long service life, custom colors and coatings available |
