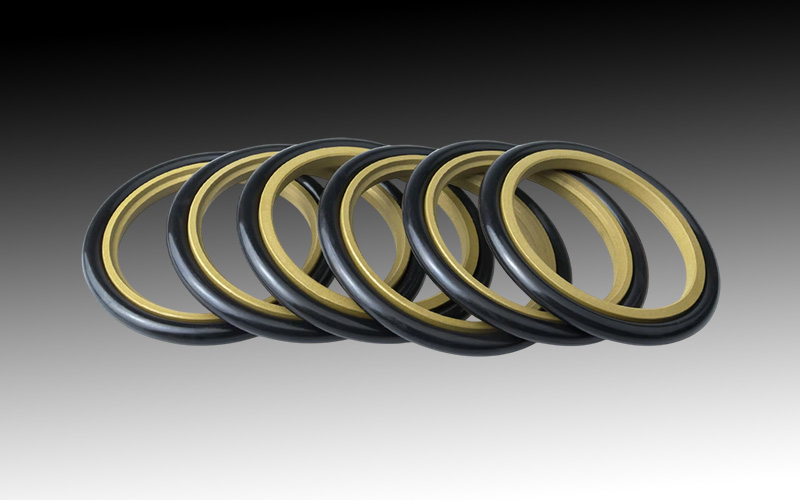

Step Seals (PTFE-Based High-Pressure Sealing)
Step Seals are advanced PTFE-based sealing solutions designed for high-pressure, reciprocating motion applications. These seals combine a precision-machined sealing ring with an elastomer energizer to ensure excellent sealing under dynamic conditions. Step Seals are widely used in hydraulic and pneumatic cylinders, injection molding machines, presses, and high-load actuators. With exceptional wear resistance, low friction, and high chemical compatibility, they extend service life while minimizing maintenance. At Teff Plast India Pvt. Ltd., we customize Step Seals for a variety of industrial requirements using premium materials and ISO 9001:2015-certified processes.
Long Life. Low Friction. Leak-Free.
Key Features & Applications
High-Pressure Sealing
Maintains excellent sealing in hydraulic systems up to 400 bar.
Low Friction, No Stick-Slip
Ideal for smooth, responsive motion in reciprocating applications.
Chemical Compatibility
Performs in aggressive fluids including hydraulic oils, solvents, and fuels.
Sealing Systems Built for Performance
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Virgin PTFE, Bronze-filled PTFE, Glass-filled PTFE with NBR/FKM energizers |
| Operating Pressure | Up to 400 bar (static) / 250 bar (dynamic) |
| Temperature Range | -30°C to +200°C (depending on elastomer type) |
| Speed Capability | Up to 15 m/s |
| Applications | Hydraulic cylinders, Pneumatic systems, Injection molding, Presses |
| Design Options | Single-acting, Double-acting, Custom profiles per drawing |
| Surface Finish Requirement | Ra ≤ 0.3 µm (rod), Ra ≤ 0.2 µm (groove) |
| Certifications | ISO 9001:2015, RoHS Compliant, FDA Grades Available |
