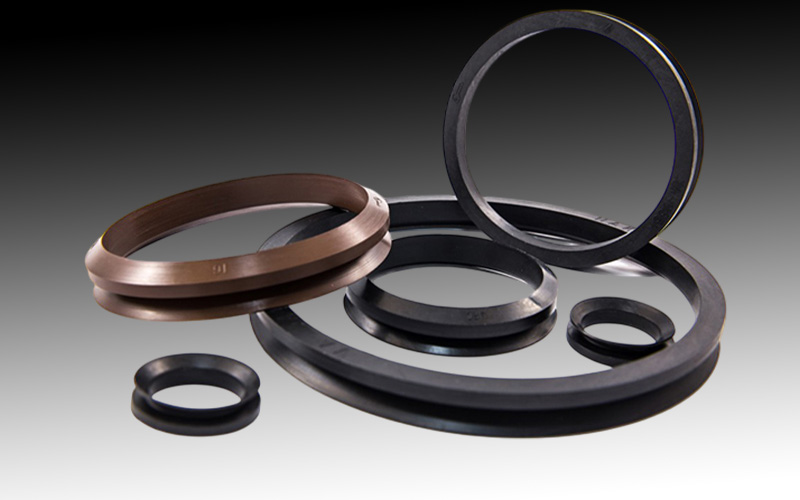

V Rings
V Rings are all-rubber rotary shaft seals that provide effective protection against dust, dirt, water, and other contaminants. These seals rotate with the shaft and exert axial contact against the counter surface, delivering a dynamic sealing solution ideal for grease-lubricated bearings. They are easy to install, require no special tools, and can compensate for misalignment, shaft eccentricity, or thermal expansion. V Rings are widely used in electric motors, pumps, gearboxes, and agricultural machinery, offering excellent flexibility, wear resistance, and reliable sealing in harsh industrial environments.
Seal. Protect. Perform.
Key Features & Applications
Dynamic Shaft Sealing
Provides reliable sealing for rotating shafts without additional housing or counterface modifications.
Self-Retaining
No clamping is needed; the flexible lip design ensures tight and secure positioning during operation.
Contaminant Protection
Guards bearings and equipment against moisture, dust, dirt, and abrasive particles.
High-Performance Rotary Shaft Sealing
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Options | NBR, FKM (Viton), EPDM, Silicone Rubber |
| Operating Temperature | -40°C to +200°C (depending on material) |
| Shaft Speed | Up to 2000 RPM |
| Pressure Rating | Atmospheric (not for pressure sealing) |
| Design Styles | VA, VS, VL, VE, VR profiles |
| Installation | Direct fit on shaft without tools or adhesives |
| Applications | Electric Motors, Gearboxes, Pumps, Fans, Agricultural & Mining Equipment |
| Standards | ISO, DIN, OEM Custom Profiles |
