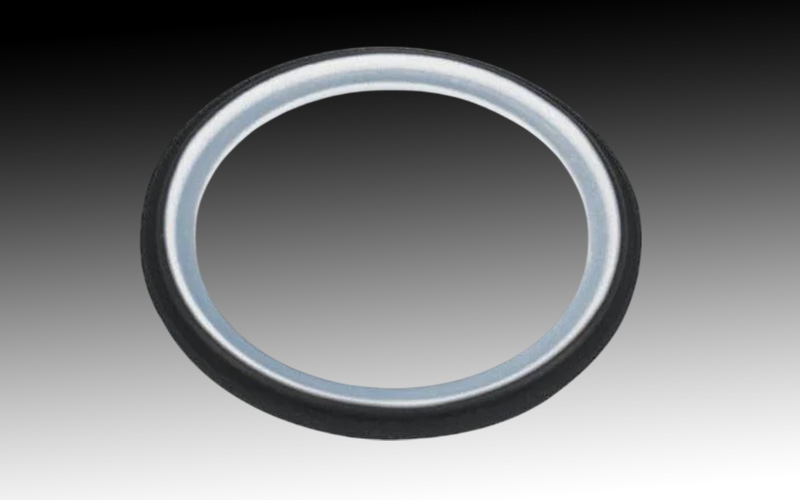

Pod Seats are critical high-precision components used primarily in valve assemblies and fluid control systems. Manufactured from high-performance materials like PTFE, PEEK, and engineered composites, these seats provide exceptional sealing performance, thermal stability, and chemical resistance under high-pressure applications. Designed to meet the demanding standards of industries such as oil & gas, chemical processing, power generation, and aerospace, our pod seats ensure leak-proof operation and long-term durability. With ISO-certified production processes and custom machining capabilities, we deliver solutions tailored to your specifications, whether for prototype development or high-volume production.
Designed to prevent leakage under extreme pressure and temperature variations.
Resistant to aggressive fluids and high thermal loads in industrial environments.
Manufactured as per drawing or sample with tight dimensional tolerances.
| Parameter | Specification |
|---|---|
| Material Options | PTFE, PEEK, UHMWPE, PPS, Filled Grades |
| Operating Pressure | Up to 250 bar (depending on size & design) |
| Temperature Range | -100°C to +260°C |
| Hardness | Shore D 55–90 (material dependent) |
| Seal Types | Single/Double Pod, Split Type, Custom Geometry |
| Applications | Ball Valves, Control Valves, Pumps, Compressors, Process Equipment |
| Certifications | ISO 9001:2015 Certified, Material Test Reports (MTR) available |
| Finish & Tolerance | Precision finish with ±10 micron tolerance as required |
